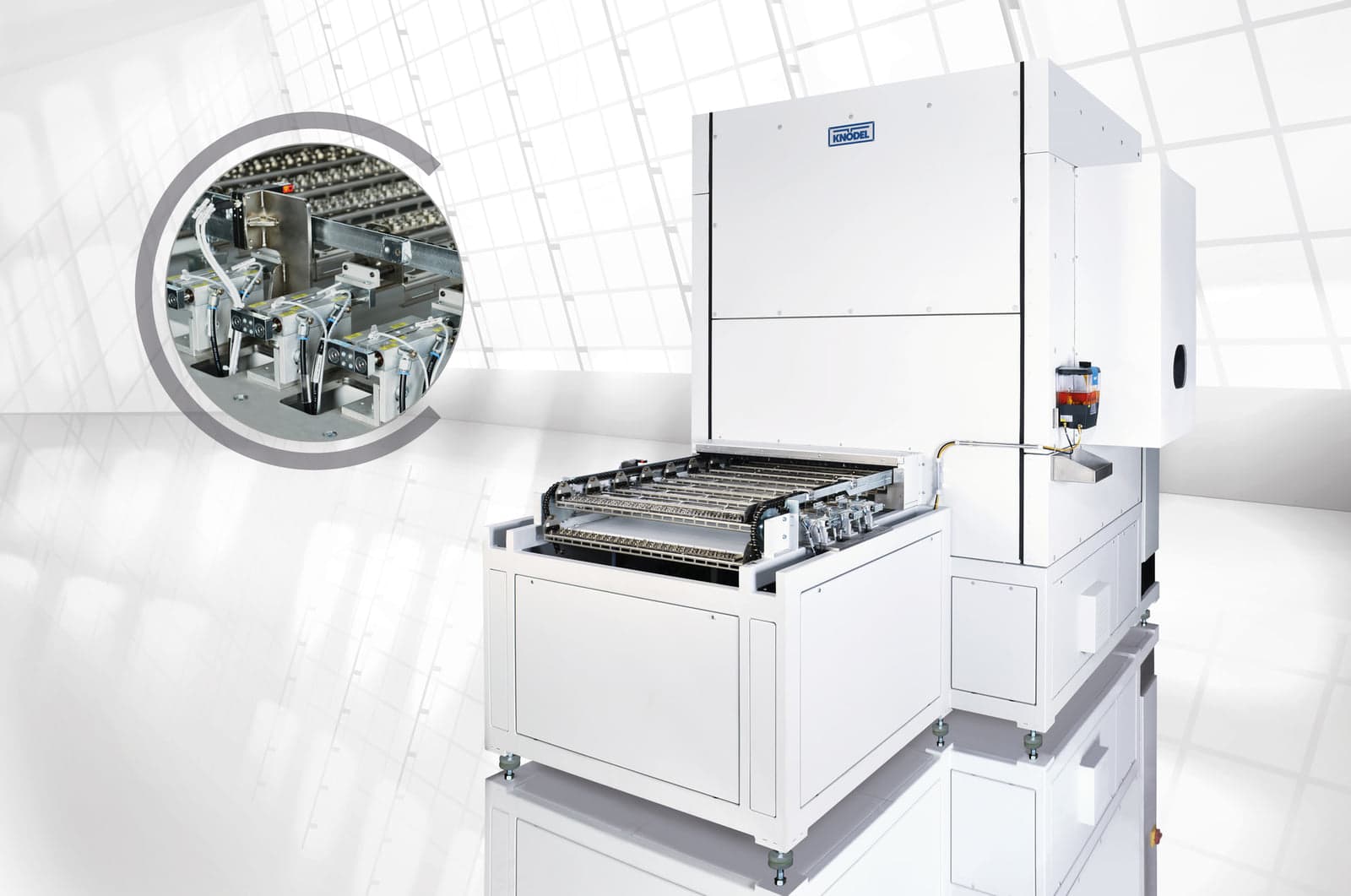

Heat treatment
Thermal Systems
Heat treatment systems based on convection and infrared radiation.
Heat treatment
Inline heat treatment systems
Our heat treatment systems operate with convection and/or infrared radiation.
For drying coatings, curing potting compounds, heating for test purposes or other applications. With various conveyor systems in horizontal and space-saving vertical configurations.
Your benefits
Why our heat treatment systems
Precise temperature control
Temperature range from 50°C to 300°C with uniform heat distribution.
Rapid heat transfer
Fast heating times ensure extended dwell time at target temperature.
Integrated cooling
Recooling via ambient air cooling zone or water-to-air heat exchanger.
Minimal downtime
Maintenance-free chains and bearings significantly reduce downtime.
Flexible conveyor systems
Horizontal and vertical configurations for different space requirements.
Low maintenance
Service-friendly design for easy maintenance and long service life.
Horizontal systems
Systems with horizontal layout
Our horizontal heat treatment systems for medium to high capacities.

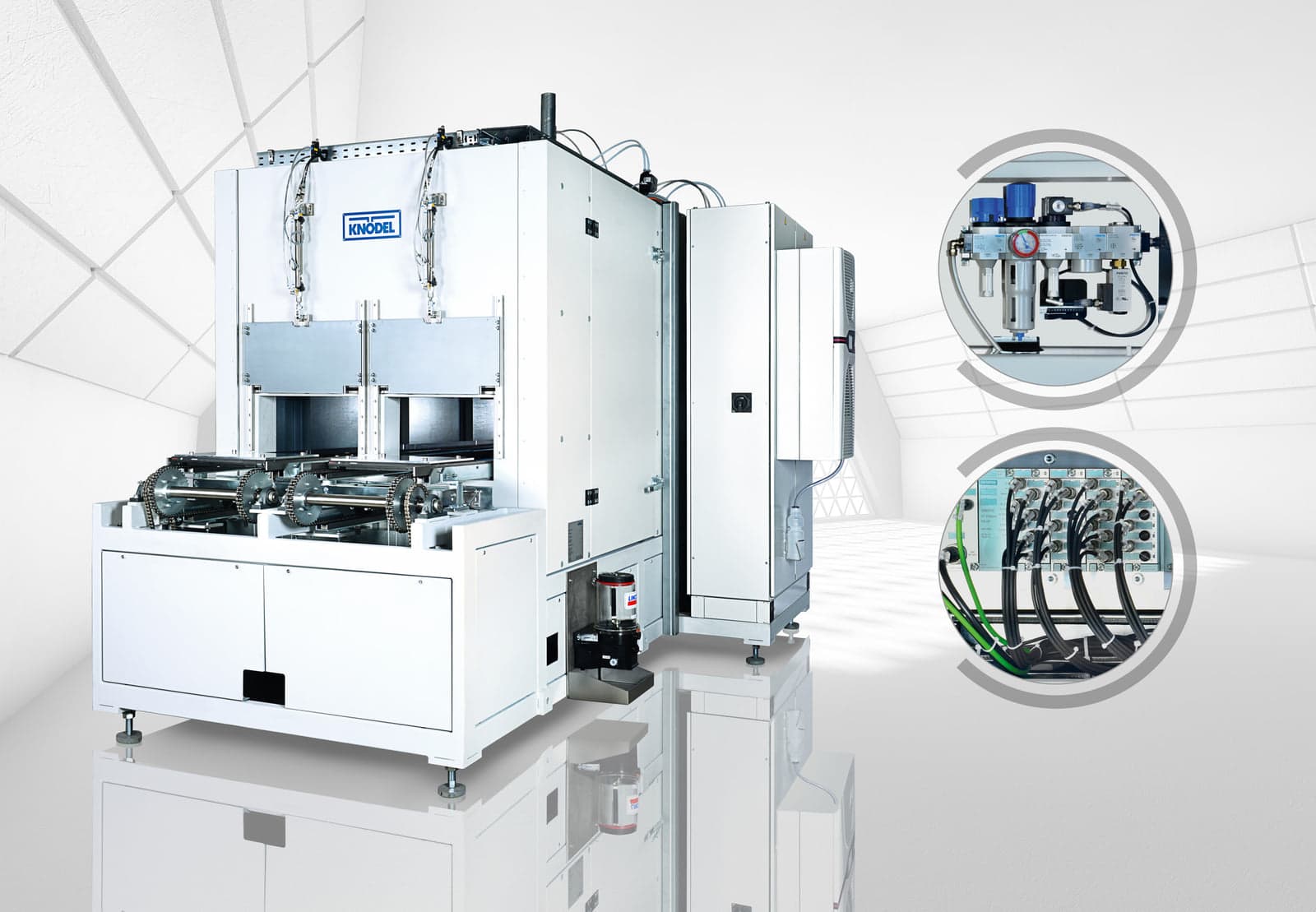

Systems for workpiece carrier transport
Front loading and rear unloading
Capacity
Temperature
- Length and width freely configurable
- High heat transfer rates for rapid heating
- Also available with integrated cooling zone
- Manual or automated loading and unloading
- Connection to MES / FIS data systems possible

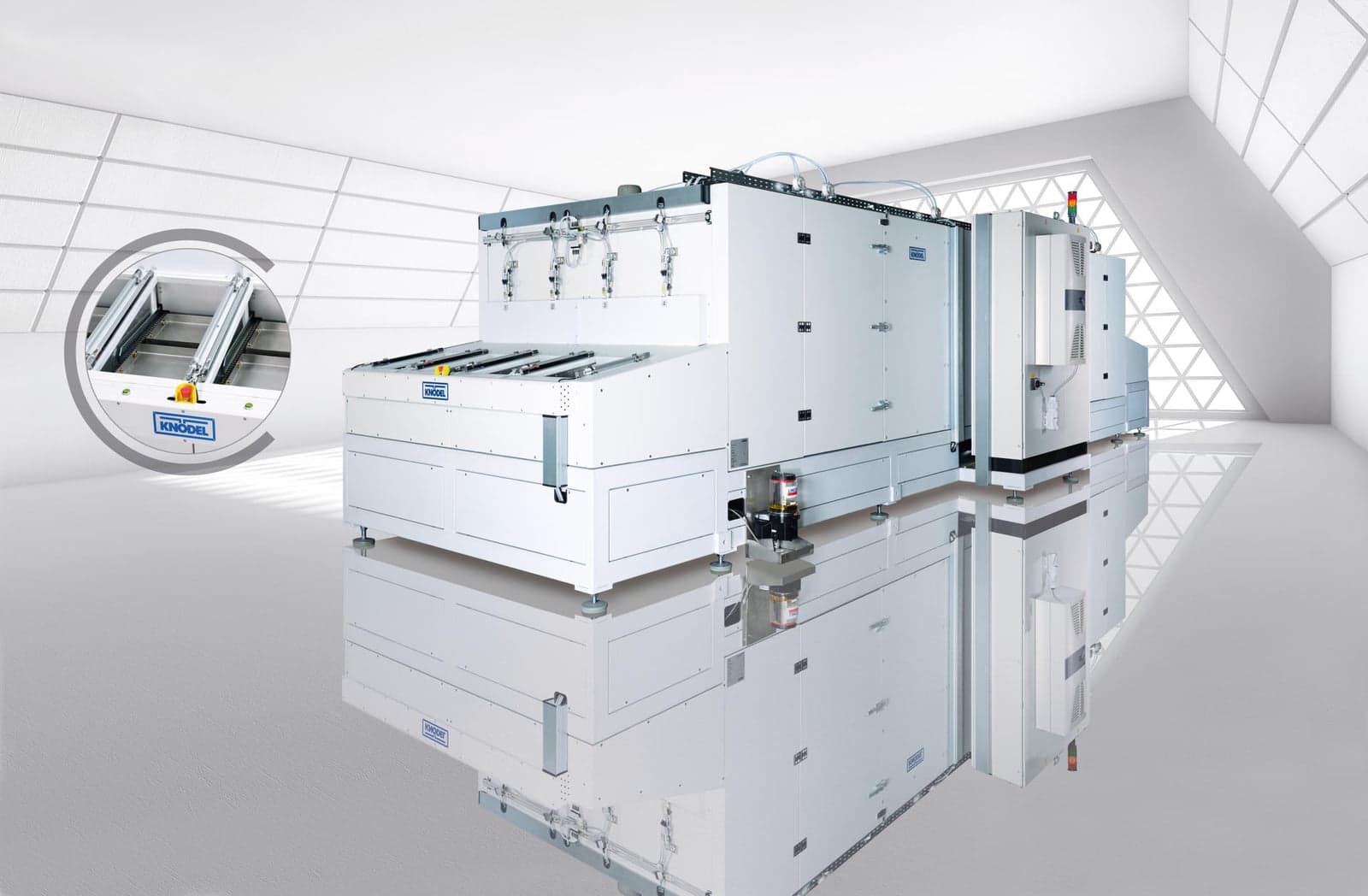

Systems with universal fixtures or conveyor belts
Front loading and rear unloading
Capacity
Temperature
- Length and width freely configurable
- High heat transfer rates for rapid heating
- Also available with integrated cooling zone
- Uniform temperature distribution
- Connection to MES / FIS data systems possible
- Control cabinet arrangement freely configurable
Systems with cross bars or gondolas
Front loading and rear loading or loop operation
Capacity
Temperature
- Length and width freely configurable
- High heat transfer rates for rapid heating
- Also available with integrated cooling zone
- Uniform temperature distribution
- Connection to MES / FIS data systems possible
- Control cabinet arrangement freely configurable
Vertical systems
Systems with vertical layout
Maximum capacity on minimal floor space through vertical conveyor technology.

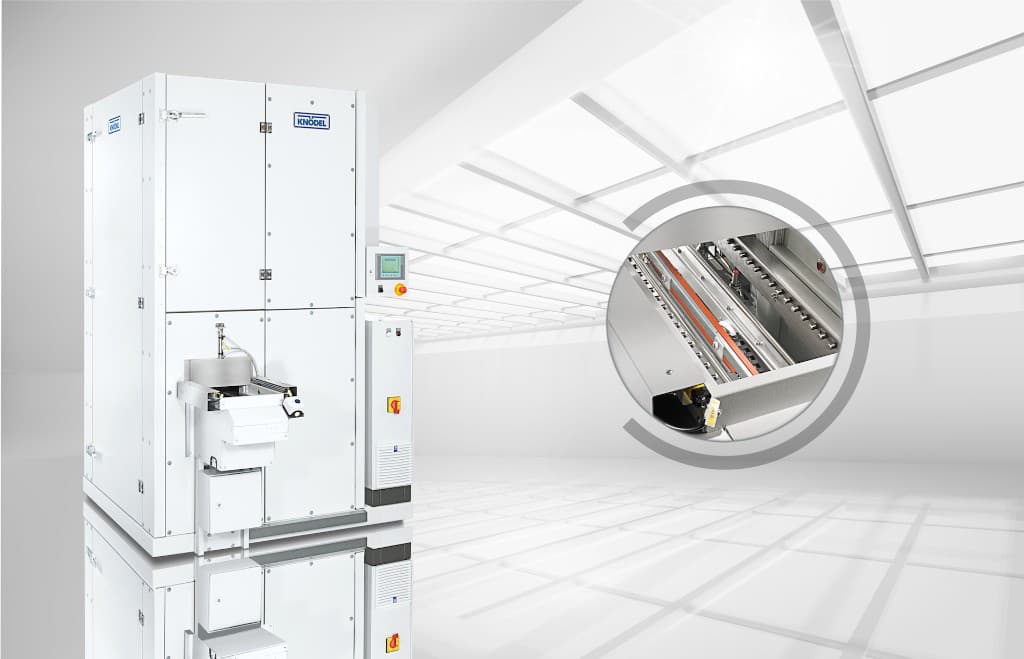

KNÖDEL vertan manu
Manual loading and unloading
Capacity
Temperature
- Rapid heat transfer ensures extended dwell time at target temperature
- Compact footprint
- Also available with integrated cooling zone

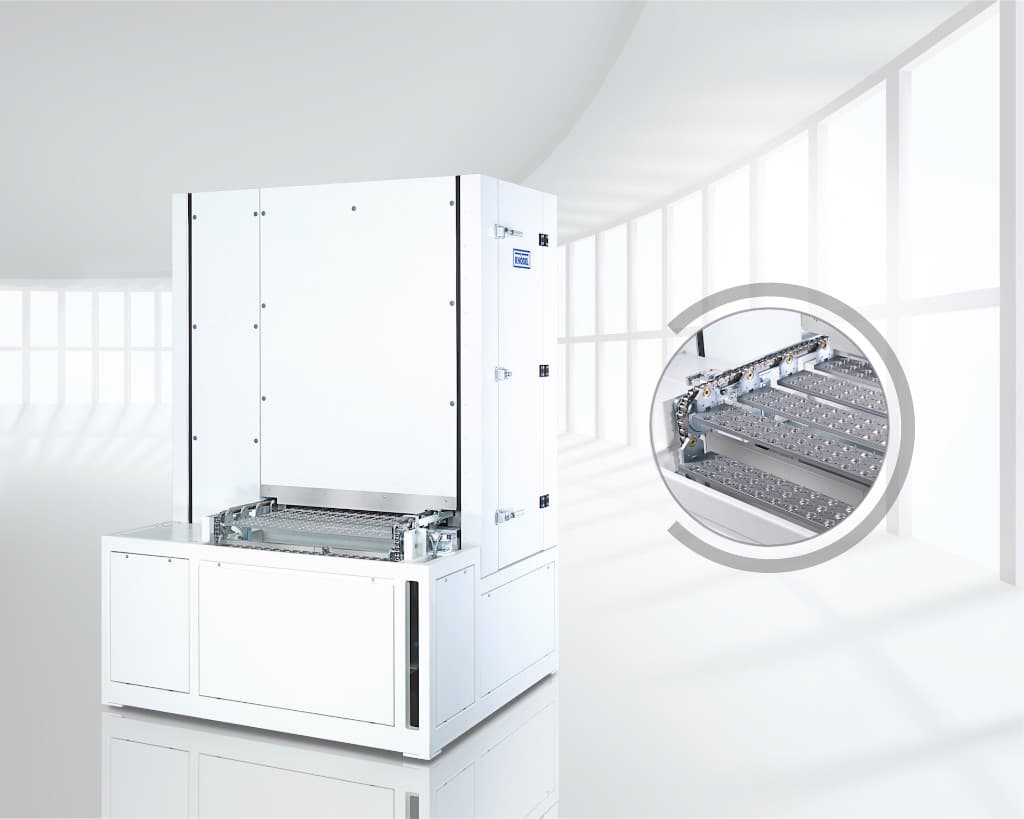

KNÖDEL pentherm-L
Manual or automated loading and unloading
Capacity
Temperature
- Compact footprint
- Also available with integrated cooling zone
- Connection to MES / FIS data systems possible
- Control cabinet arrangement freely configurable

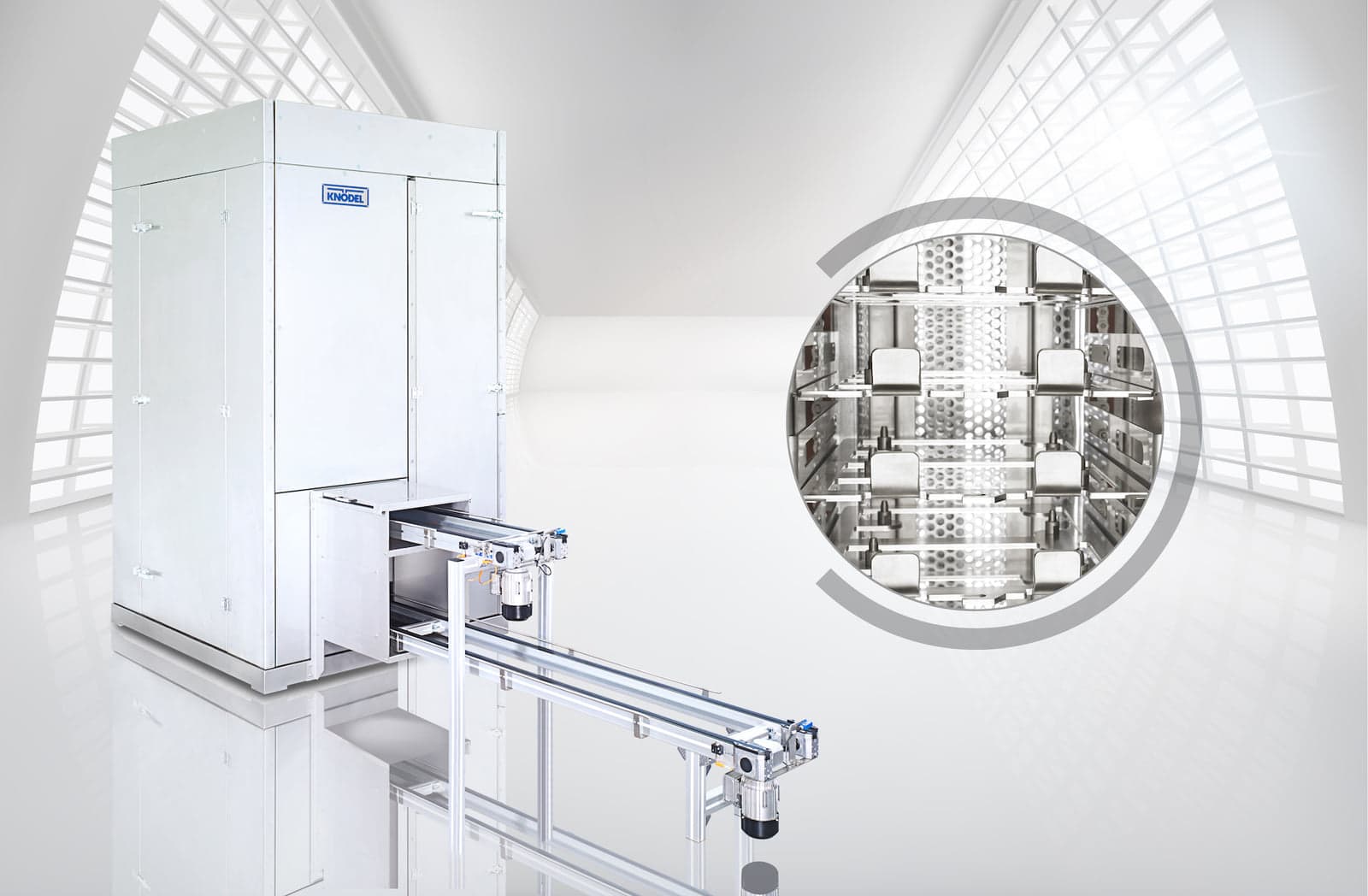

KNÖDEL vertan
Capacity
Temperature
- High capacity with small footprint
- Configurable for various workpiece dimensions
- Also available with integrated cooling zone
- Connection to MES / FIS data systems possible
- Control cabinet arrangement freely configurable
KNÖDEL vertan
Capacity
Temperature
- High capacity with small footprint
- Configurable for various workpiece dimensions
- Also available with integrated cooling zone
- Connection to MES / FIS data systems possible
- Control cabinet arrangement freely configurable
Consultation & Inquiry
Individual consultation for your application
Our experts will be happy to advise you on the optimal solution for your specific requirements. Contact us for a non-binding conversation.
